A true plugin model / Expose your app's objects


Expose your app's objects / A true plugin model.
This sample will teach you how to expose classes from an ActiveX EXE to other Applications. I felt that a Main App / Plugin relationship (like in Photoshop) will be best suited to showcase this cool solution.

This is how it works:

When an object gets created based on a class from an ActiveX Exe it gets created
in its own memory area (Multiple objects based on the same class cannot share
their data). In C++ that object registers itself with the ROT (Running Object
Table) so that anybody who needs to, can access that instance of the object.
For instance Excel. When Excel is running you can refer to the running instance
from VBA/VB, and access any data that's present in the spread sheet. However
VB based objects lack that functionality. Activex EXE created in VB will NOT
get registered in the ROT! (That's why you can't use GetObject on VB made ActiveX's
;-) )


Anyhow, here is a solution that will register your ActiveX EXE in the ROT,
and you will be able to reference the running instance of your object from any
other application.

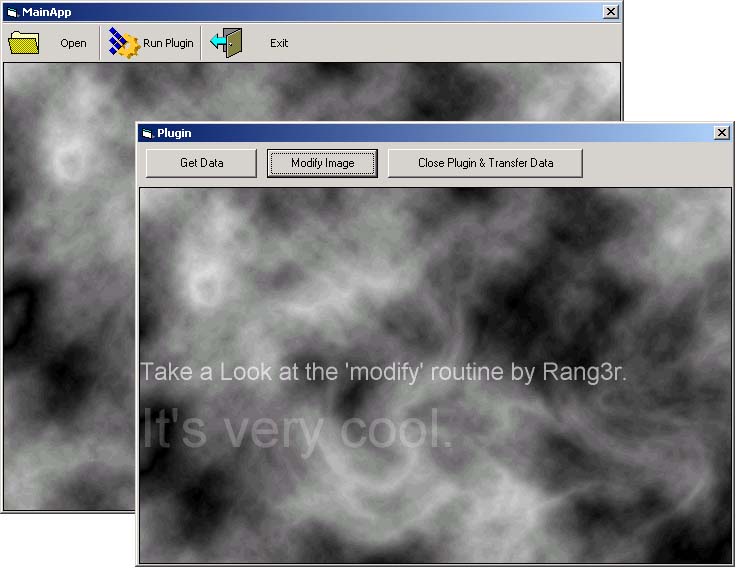

Please use this sample as follows:



  1. Extract Files from Zip (use folder names checked)

  2. run MainApp.EXE (ActiveX EXE)

  3. click on the OPEN icon

  4. load the supplied BMP

  5. wait for a few sec....(sorry the image handling is awfully slow, I didn't
    wanted to deal with DIB's for simplicity reasons)

  6. plugin Button should be enabled by now (this calls a ShellExecute and runs
    a regular EXE (our plugin)

  7. In the plugin click on GetData (this will transfer the image from the main
    app)

  8. click on modify image (thanx Rog3r)

  9. click on Close Plugin & Transfer data (this will transfer the modified
    image back to the main app)

  10. Voila


The benefits: If you expose your app's objects up front, you can later on create
any plugins/addons you want without modifying the original app.


This is my first contribution to planet-source-code. Please let me know what
you think (bad/good, anything is welcome) and like always VOTE.


Thanx

Raf
