A PIECE OF CODE FOR READING WAVE FILES


Fellow programmers. Ever wonder how one company's software reads a wave file and show it as a wave sample?

This code demonstrated how you can read a wave file and DISPLAY it as a wave sample without using a single API! It opens a wave file (FOR RANDOM) to reads the so-call BINARY (ASCII) and draws the lines in a picture box according to the data in the file.
Please note that the wave samples produces by this code are not as detail as those you found in some WAVE EDITOR.
I'm still figuring out the wave format and try to play the sound. If you know a function that can play sections of a wave file, generate sounds at different volume and frequency or directly make the speakers (connected to the sound card) vibrate at different frequency and volume, please send me an E-mail...Thanks.

Original Author: Altis

Assumptions

Insert a command button, picture box and a common dialog box before running this code.

Returns

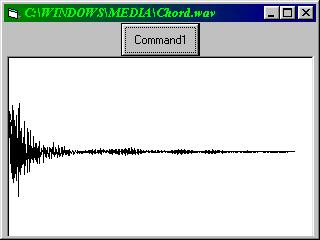

WAVE SAMPLES

Code

Option Explicit
Private Sub Command1_Click()
Dim FileNumber As Integer
Dim I As Single
Dim Min As Single
Dim Max As Single
Dim Temp As Integer
Dim XZoomrate As Single
Dim YZoomrate As Single
Dim LastX As Single
Dim LastY As Single
On Error GoTo ErrorHandler
' Enable Cancel error
With Picture1
CommonDialog1.CancelError = True
CommonDialog1.Filter = "Wave files (*.wav)|*.wav"
CommonDialog1.ShowOpen

' Change the caption of the form
Me.Caption = CommonDialog1.filename

I = 44 ' Set I To 44, since the wave sample is begin at Byte 44.
' Open file to get the length of the wav
' e file.
FileNumber = FreeFile
Open CommonDialog1.filename For Random As #FileNumber
Do
  Get #FileNumber, I, Temp
  I = I + 1
  ' Get the smallest and largest number. T
  ' hey will be use for the adjustment
  ' of the vertical size.
  If Temp < Min Then Min = Temp
  If Temp > Max Then Max = Temp
Loop Until EOF(FileNumber)
Close #FileNumber
' Adjust values and reset values
XZoomrate = (.Width / I)
YZoomrate = (Max - Min) / (.Height / 2)
.CurrentX = 100
.CurrentY = .Height / 2
LastX = 100
LastY = .Height / 2
.AutoRedraw = True
I = 44
' Reopen file using a different FileNumb
' er
FileNumber = FileNumber + 1
.Cls
Open CommonDialog1.filename For Random As #FileNumber
Do
  Get #FileNumber, I, Temp
  ' Set CurrentX and CurrentY
  .CurrentX = .CurrentX + XZoomrate
  .CurrentY = (Temp / YZoomrate) + .Height / 2
  ' Plot graph
  Picture1.Line (LastX, LastY)-(.CurrentX, .CurrentY), vbBlack
  ' Reset values
  LastX = .CurrentX
  LastY = .CurrentY
  I = I + 1

  If .CurrentX > .Width Then Exit Do
Loop Until EOF(FileNumber)
Close #FileNumber
End With

ErrorHandler:
' Do nothing
End Sub
Private Sub Form_Resize()
On Error Resume Next
' Resize control
With Picture1
.BackColor = vbWhite
.ForeColor = vbBlack
.Move 50, 500, Width - 200, Height - 800
End With
End Sub
